VISION INSPECTION
vision inspection

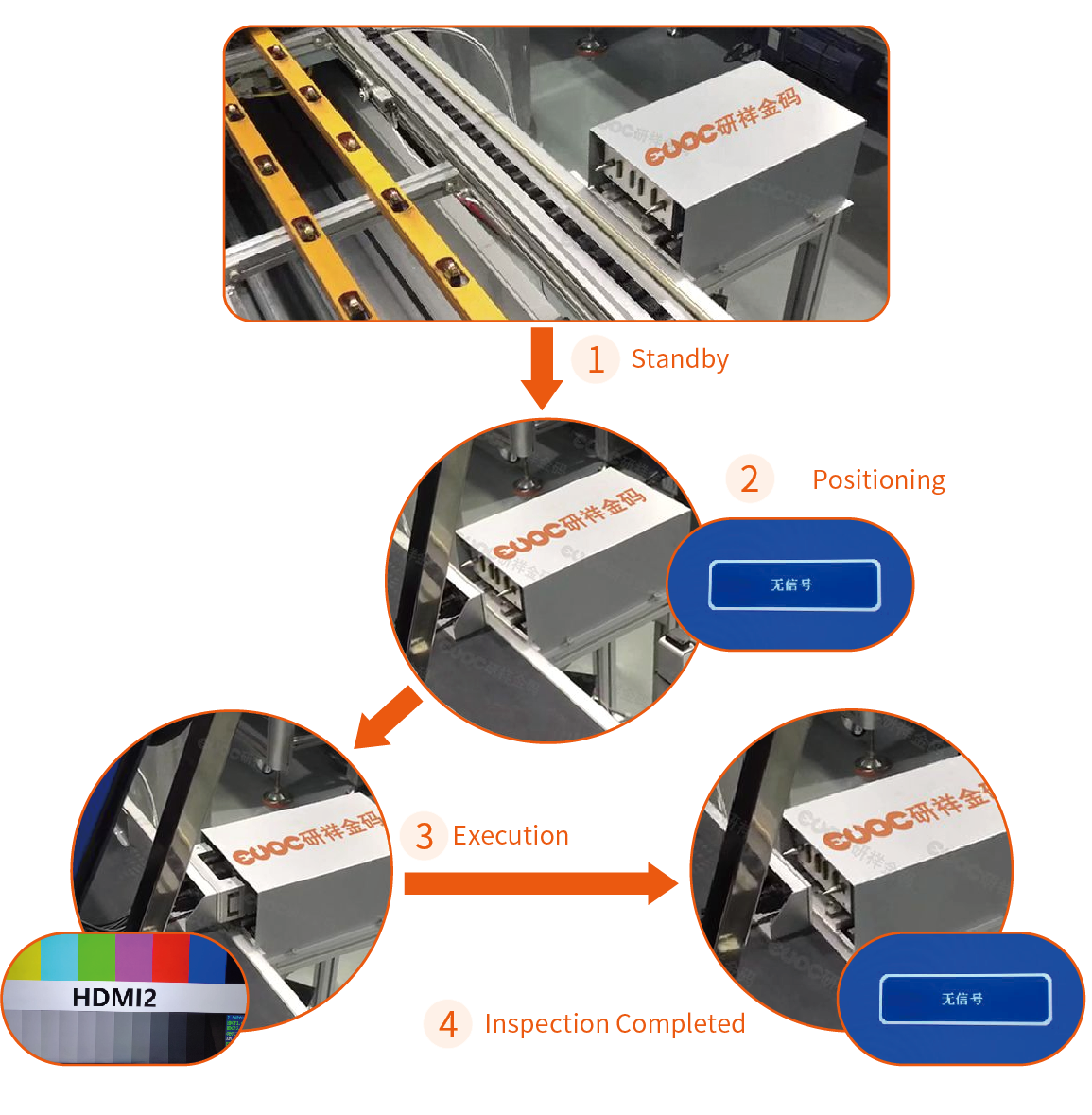

Utilizing micro-spherical magnetic high-durability elastic pin technology, this solution enables high-quality, stable, and reliable transmission of multiple audio/video signals. When paired with compatible equipment, it achieves automatic docking for fully automated production and testing, reducing labor while improving efficiency. It is suitable for intelligent detection of electronic products including smart displays, intelligent TVs, monitors, and all-in-one PCs.
| Product Name | Inspection Items | ||
|---|---|---|---|
| Signal Interfaces | HDMI, DP, LVDS, V-by-One, Type-C, USB 3.0 and other high-speed signal transmissions, supporting 4K resolution | ||
| ATV, DTV, AV, YPBPR, SPDIF, and other audio/video signal transmission interfaces | |||
| Signal Transmission: LAN, USB2.0, USB3.0, RS232 | |||
| Performance Specifications | Supports common signal formats including 3840x2160@60Hz, 1080P@60Hz, 720P@60Hz | ||
| Service Life | Up to 150,000 or more insertion/extraction cycles | ||
| Module Options | Modular design, on-demand configuration, high flexibility, strong expandability | ||
| Installation Methods | High-redundancy design with flexible X,Y,Z-axis displacement to accommodate factory production environments | ||
| Compact installation footprint: Type A female connector: ≤140mm(L)65mm(W)65mm(H) Type B female connector: ≤220mm(L)65mm(W)40mm(H) Male connector: ≤300mm(L)360mm(W)930mm(H) | |||
| Cable Types | SCADA; MES; CIM adopt standard interfaces, requiring no custom cabling or crimping | ||
| Labor Savings | Saves 1 operator per workstation, potentially reducing 1-20 operators | ||
