Single-device coverage for entire logistics surfaces, delivering convenience and efficiency; 8K ultra-high-speed CMOS camera achieves up to 5.3m/s reading speed, compatible with most conveyor systems
Robust continuous decoding algorithm supports short/no spacing between packages (front/rear & left/right) enabling 24/7 uninterrupted code reading
Advanced checksum algorithm enables high-speed scanning with verification; Combined with multiple imaging optimization algorithms to comprehensively solve issues like blurry/damaged codes achieving ultra-reliable error-free reading
| Model | R-X108 | R-X116 | R-X080H | |
|---|---|---|---|---|
| Product Performance | Sensor | CMOS Image Sensor | ||
| Pixel Count | High-Speed CMOS Line Scan (8192 Pixels) | High-Speed CMOS Line Scan (16384 Pixels) | High-Speed CMOS Line Scan (8192 Pixels) | |
| Decodable Symbologies | Barcode：Code128,Code39,Code93,EAN13, EAN8,UPCA,UPC-E,CodeBar,ITF25 | Barcode：Code128,Code39,Code93,EAN13,EAN8,UPC-A,UPC-E,CodeBar,ITF2 | ||
QR Code：QR,MicroQR,DataMatrix（ECC200）,GS1DataMatrix，PDF417 | QR Code：QR,DataMatrix（ECC200）,GS1DataMatrix，PDF417 | |||
| Communication Protocol | Ethernet | TCP/IP，F(xiàn)TP，HTTP，ModBus，PROFINET，EtherNet/IP | TCP/IP，F(xiàn)TP，HTTP，ModBus | |
| Serial Communication | RS-232，Communication Speed：9600，19200，38400，57600， 115200bps | RS-232，Communication Speed：9600，19200， 38400，57600，115200bps | ||
| Structure | Focusing Method | Autofocus | ManualFocus | |

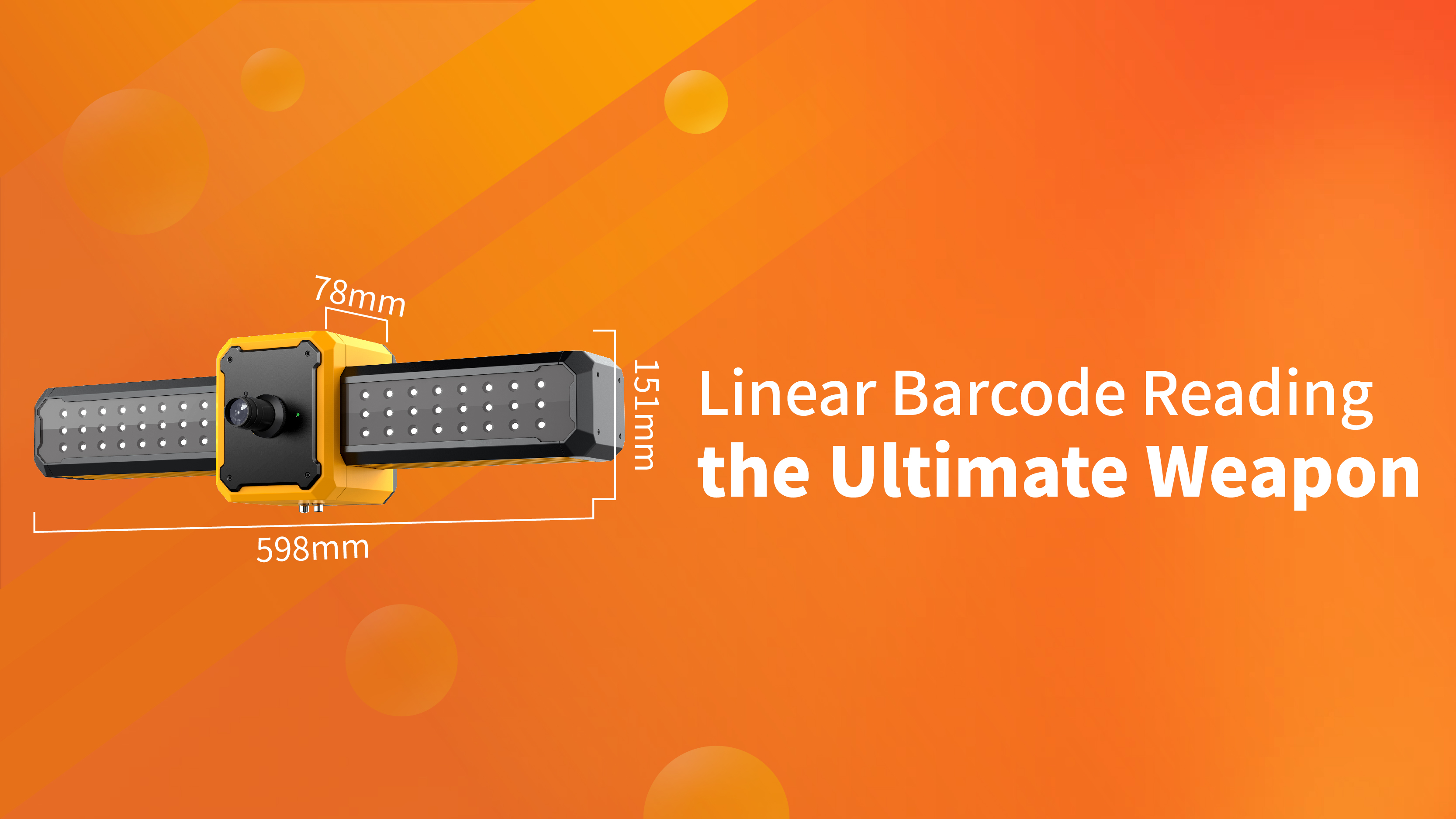

| Dimensions | 598*151*78（mm） | |||
| Weight | Approxim 3.5kg | |||
| Electrical Specifications | Illumination System | High-brightness red LED / High-brightness white LED | ||
| Buzzer | Support | |||
| Button | Trigger Button | |||
| Communication Interface | Ethernet，Serial Port | |||
| Digital I/O | Isolated Digital I/O (2 Input + 2 Output)（Output: 100mA or lower） | |||
| Power Supply/Consumption | ≤ 160W@48VDC（±10%） | |||
| Environmental Resistance | Operating Temperature | 0~50℃ | 0~45℃ | |
| Storage Temperature | -10~51℃ | |||
| Environmental Humidity | 20%~80%RH（No condensation） | |||
| Protection Level | IP65 | / | ||
| Standard | Certification | CE Certification,Certification,Compliance with EU RoHS Standards | ||
