Built-in industry-leading AI barcode decoding algorithm
Manual focusing lens
Integrated multi-group controllable lighting meeting flexible production demands
The fast response image sensor ensures that every image can be read with high precision.
High precision reading performance and high-quality recognition image quality.
Equipped with rich IO interfaces it can handle complex environments with ease.
| Model | R-3100 | R-3150 | R-3180 | R-3300 | R-3350 | R-3380 | R-3005H | R-3013H | R-3050H | |
|---|---|---|---|---|---|---|---|---|---|---|
| Product Performance | Sensor | CMOS Image Sensor | ||||||||
| Pixel Count | 728*544 | 1280*1024 | 728*544 | 1280*1024 | 1920*1200 | |||||
| Decodable Symbols | 1D Barcode: Code128, Code39, Code93, EAN13, EAN8, UPC-A, UPC-E, CodeBar, ITF25 | |||||||||
| 2D Barcode: QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417 | ||||||||||
| Communication Protocol | Ethernet | TCP/IP, FTP, HTTP, ModBus, PROFINET, EtherNet/IP | TCP/IP, FTP, HTTP, ModBus | |||||||
| Serial Communication | RS-232, Baud Rate: 9600, 19200, 38400, 57600, 115200bps | |||||||||
| Structure | Focusing Method | Manual | ||||||||
| Polarizing Filter | Supported | / | ||||||||

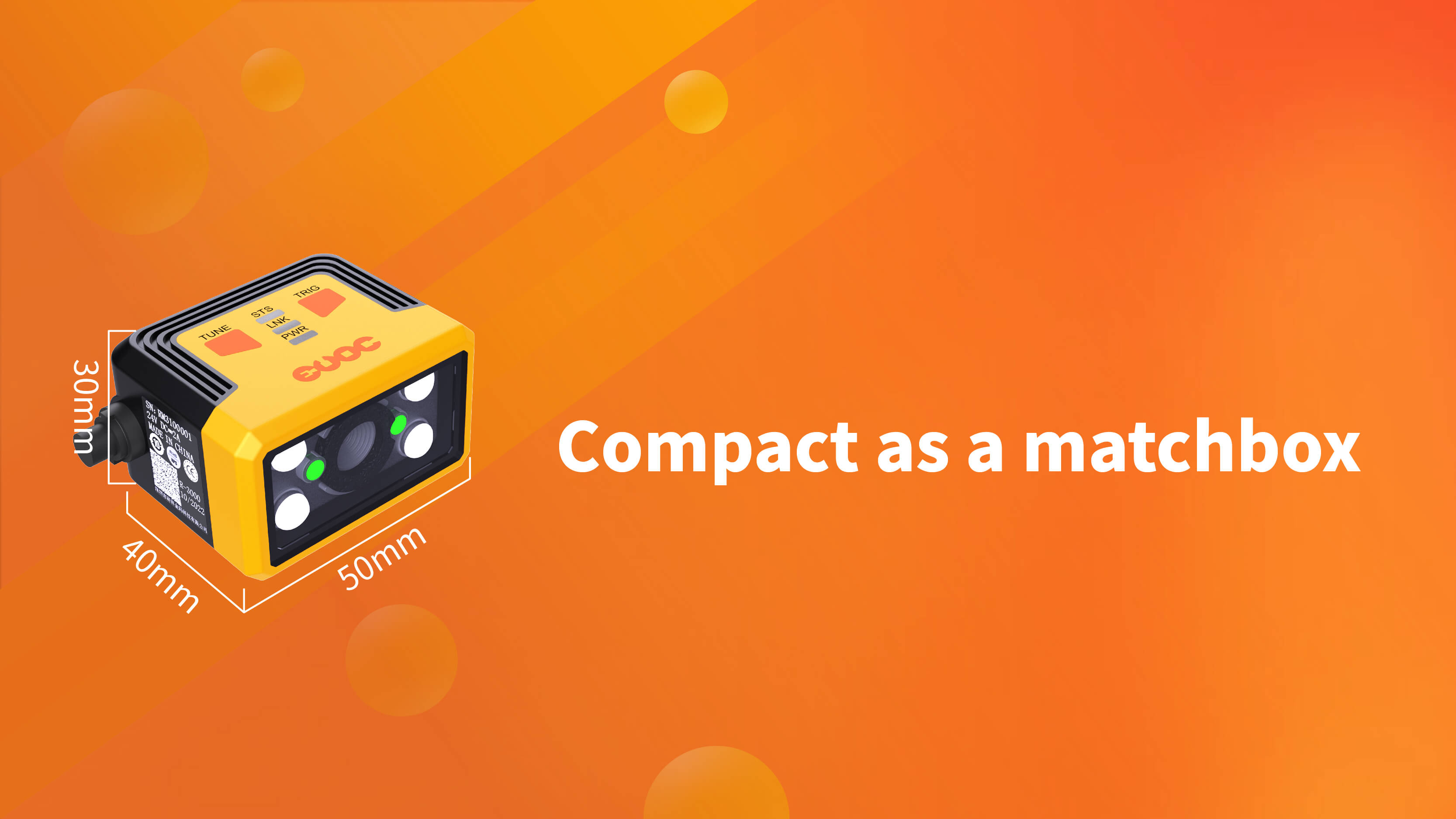

| Dimensions | 50*40*30 (mm) | |||||||||
| Weight | Approx. 120g | |||||||||
| Electrical Specifications | Lighting Source | LED | ||||||||
| Positioning Indicator | High Brightness Green LED | |||||||||
| Status Indicator | Power Indicator, Network Indicator, Decoding Status Indicator, Decoding Status Buzzer | |||||||||
| Button | Trigger Button | |||||||||
| Communication Interface | Ethernet, Serial Port | |||||||||
| Digital IO | Isolated IO Input/Output, 2 Inputs, 2 Outputs | |||||||||
| Power Supply/Consumption | ≤ 10W@24VDC (±10%) | |||||||||
| Environmental Resistance | Operating Temperature | 0~50℃ | 0~45℃ | |||||||
| Storage Temperature | -10~50℃ | |||||||||
| Environmental Humidity | 20%~80%RH (non-condensing) | |||||||||
| Protection Level | IP65 | / | ||||||||
| Standard | Certification | CE Certification, FCC Certification, Compliant with EU ROHS Standard | ||||||||
